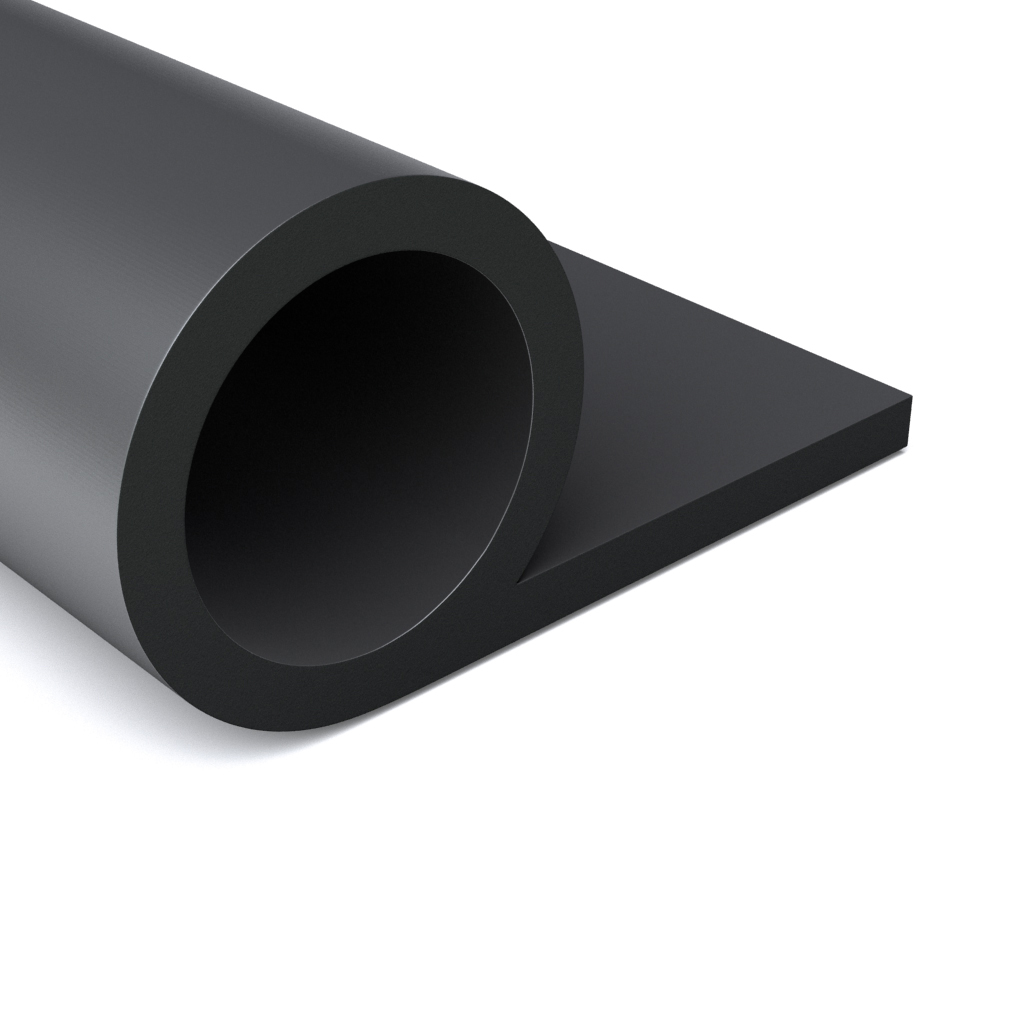

ES20-006-E60 is a P-shaped, 60-durometer solid profile made of EPDM rubber. This P-seal is black in color and has a tail or stem that is 51 mm long and 34 mm wide. ES20-006-E60 also has a circular bulb that is 25 mm tall and that supports compression. EPDM rubber is used in many outdoor applications because it’s weather resistant.
MATERIAL:EPDM Rubber
WIDTH:As shown
HEIGHT:As shown
TOLERANCE:RMA-E2
SCALE:Not to scale
COLOR:Black
DURO:60 ±5
E20-006-E60 is a 60-durometer, solid rubber profile that is made of EPDM rubber and looks like the letter P. The bulb of this P-seal compresses to fill a gap and provides the sealing action. The stem supports mechanical attachment to a substrate. ES-006-E60 is black in color.
TPE gaskets are made of thermoplastic elastomers, a group of rubber-like materials that are lightweight, recyclable, and easy to color match.
