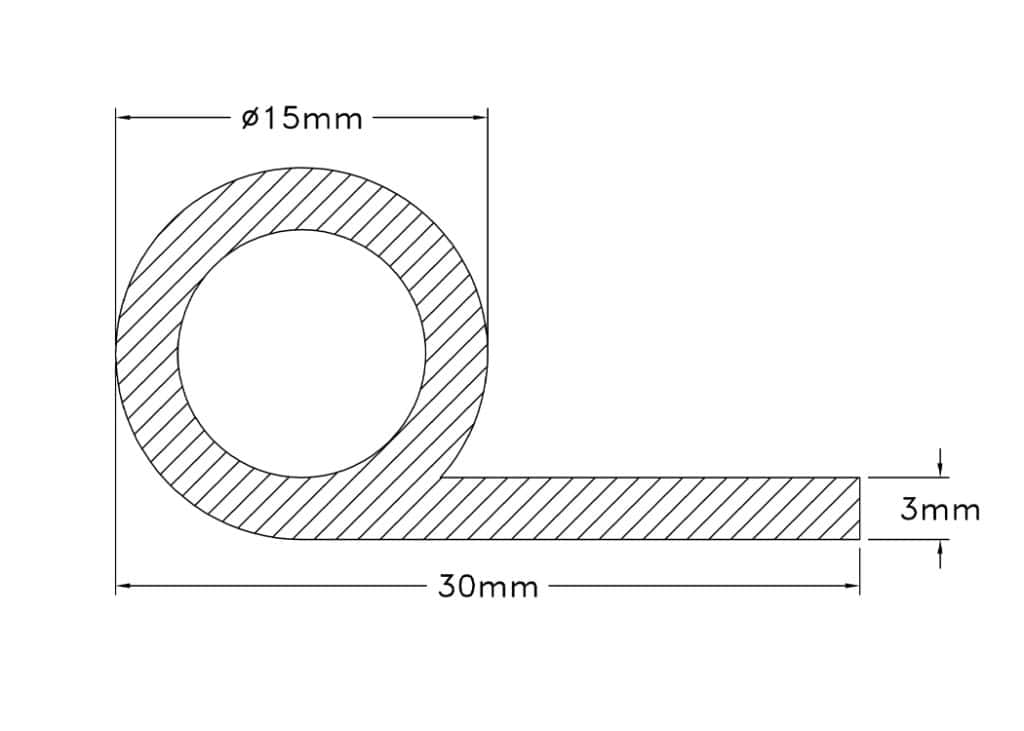

ES20-055-E70 is a 70-duromter P-seal that is made of EPDM rubber and black in color. This solid rubber profile is extruded and meets RMA-E2 tolerances. The stem or tail of ES20-055-E70 is 30 mm long, 3 mm wide, and designed for mechanical attachment. The circular bulb section is 15 mm in diameter and is compressible.
MATERIAL:EPDM Rubber
WIDTH:As shown
HEIGHT:As shown
TOLERANCE:RMA-E2
SCALE:Not to scale
COLOR:Black
DURO:70 ±5
ES20-055-E70 is a solid EPDM rubber profile that is P-shaped. The circular bulb compresses to fill a gap and provides the sealing action. The stem is used for attaching the gasket to a substrate. An installer lays the tail of the atop a flat piece of metal and rivets the rubber stem in place, or lays a piece of bar stock on top of the tail.
TPE gaskets are made of thermoplastic elastomers, a group of rubber-like materials that are lightweight, recyclable, and easy to color match.
