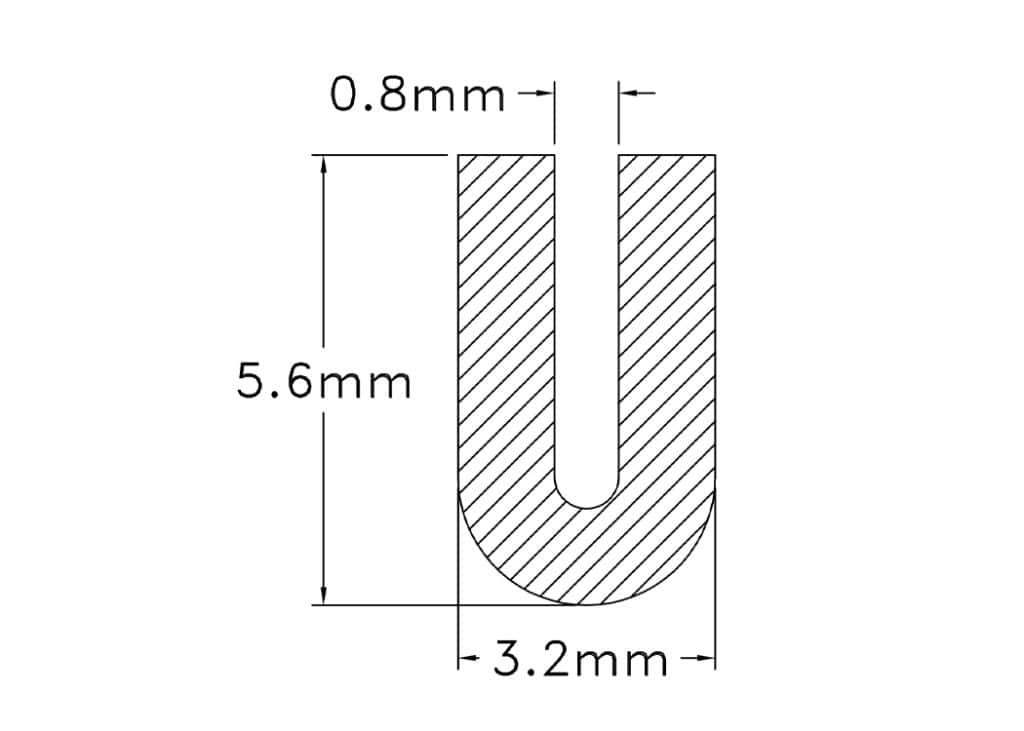

ES32-062-E70 is a U-shaped, 70-durometer, solid rubber profile that is made of EDPM, an elastomer that resists outdoor environments. It is black in color and has a rounded base that is 3.2 mm wide. ES32-062-E70 is 5.6 mm tall and the distance, or gap, between the two legs is 0.8 mm. This solid profile installs over a flange.
MATERIAL:EPDM Rubber
WIDTH:As shown
HEIGHT:As shown
TOLERANCE:RMA-E2
SCALE:Not to scale
COLOR:Black
DURO:70 ±5
ES32-062-E70 is a 70-durometer (Shore A) solid rubber EPDM profile that is U-shaped with a rounded bottom. It is 5.6 mm tall and the distance, or gap, between the two legs of the U-shape is 0.8 mm. ES32-062-E70 is black in color, has an RMA-E2 tolerance, and is designed to install over an edge or flange with a press fit.
TPE gaskets are made of thermoplastic elastomers, a group of rubber-like materials that are lightweight, recyclable, and easy to color match.
